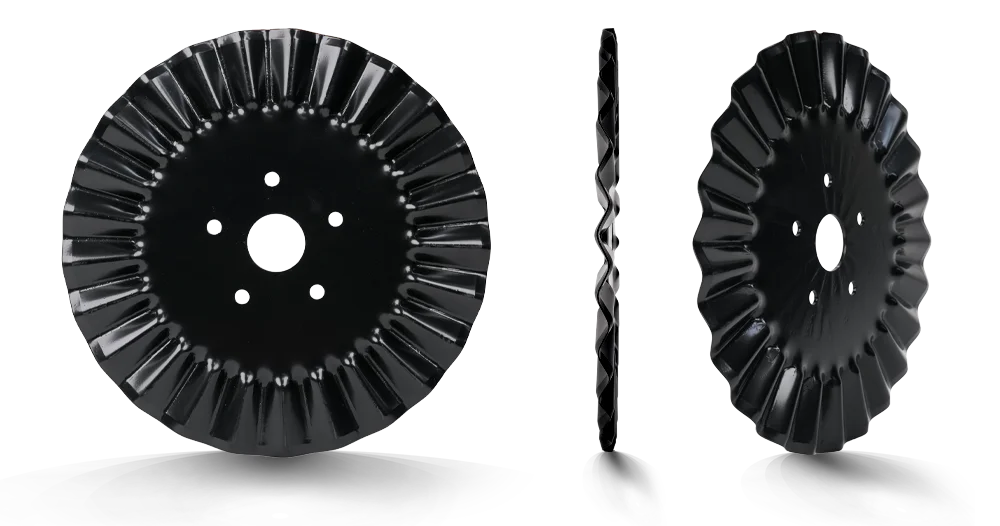

Wavy (24-25) Coulter Blade
More soil disturbance
With built-in strength and durability, the wavy coulter blade is designed for deeper ground penetration and greater soil movement in no-till applications. When placed in front of a planter, the wavy coulter blade helps move crop residue out of the way, allowing planter blades to do their job. Osmundson can make 8-wave up to 36-wave coulters blades — giving farmers varying degrees of soil movement and penetration.
Soil type:
Wet Conditions
Machine type:
Tillage
Available sizes
16", 17", 18", 20", 22", 24"
Aggressiveness
Residue Management
Soil Penetration
Seedbed Prep
|
Wavy (24 wave)
|
||||||
|---|---|---|---|---|---|---|
| Blade Size (inches) | 16 | 17 | 18 | 20 | 22 | 24 |
| Blade Thickness (inches) | .118, .138, .157, .177, .197, .256 | .138, .157, .177, .197, .236 | .118, .138, .157, .177, .187, .197, .236, .256 | .138, .157, .177, .187, .197, .236, .256 | .157, .177, .187, .197, .236, .256, .313 | .177, .197, .236, .256 |
|
Wavy (25 wave)
|
||||||
| Blade Size (inches) | 16 | 17 | 18 | 20 | 22 | 24 |
| Blade Thickness (inches) | .118, .138, .157, .177, .197, .256 | .138, .157, .177, .197, .236 | .118, .138, .157, .177, .187, .197, .236, .256 | .138, .157, .177, .187, .197, .236, .256 | .157, .177, .187, .197, .236, .256, .313 | .177, .197, .236, .256 |
