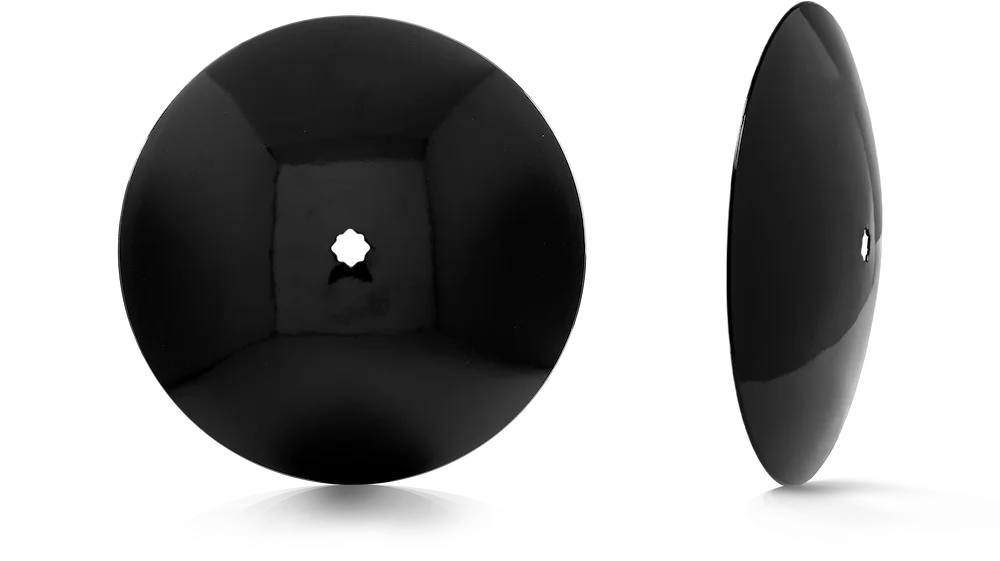

Plain Disc Blade
The gold-standard original
One of our backbone products, the plain disc blade is designed to penetrate the ground and move soil in all conditions. It also lasts the longest. And whether farmers need to move large amounts of soil or push the speed of their passes, Osmundson plain disc blades range from shallow to deep concavities.
Soil type:
Black Dirt/Loam, Clay, Rocky, Sandy, Wet Conditions
Machine type:
Tillage
Available sizes
16", 17", 18", 20", 22", 24", 26", 28", 30", 32"
Aggressiveness
Residue Management
Soil Penetration
Seedbed Prep
|
Plain
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Blade Size (inches) | 16 | 17 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 |
| Blade Thickness (inches) | .118, .138, .157, .177, .197, .256 | .138, .157, .177, .197, .236 | .118, .138, .157, .177, .187, .197, .236, .256 | .138, .157, .177, .187, .197, .236, .256 | .157, .177, .187, .197, .236, .256, .313 | .177, .197, .236, .256 | .197, .236, .256, .312 | .125, .236, .312 | 0.313 | .313, .394 |
